For More Picture's Please Scroll Down.

Price: £799.99

Delivery Availible

Please check out our comprehensive parts section. e Bikes Online sells all the spare parts you will needed for our pit bikes as well as the majority of other Pit Bikes available in the market. We also have a wicked selection of performance parts to help you stand out from the crowd and leave the competition in the dust!!! So please take a look at our Parts section to see our range of CNC, KMC, FastAce, Mikuni and many more amazing products!!!!!

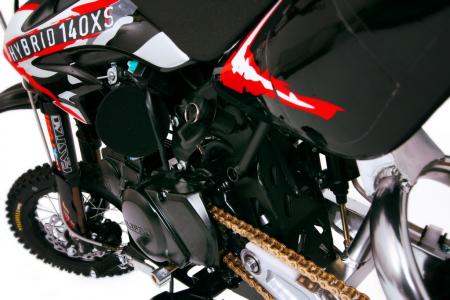

Engine Details

Engine type: 140cc, 2-valve, 1-cylinder, water-cooled, 4-stroke
Bore x stroke: 54 x 54mm
Piston swept volume: 124ml
Compressing ratio: 10.1:1
Max torque: 8.8N.m / 7,500 - 8,000rpm
Max power and speed: 8.2kW / 8,600±590rpm
Idle speed: 1,300±100rpm
Clutch type: moist
Starting method: kick
Lubrication way: press and splash
Ignition: CDI
Transmission: 4-speed manual clutch (1-N-2-3-4)
Drive train: chain
Min. fuel consumption: 354g/kW/h

Vehicle Details

FRAME : Chromoly double beam with back loop dismountable
SWING ARM : Aluminium type cantilever

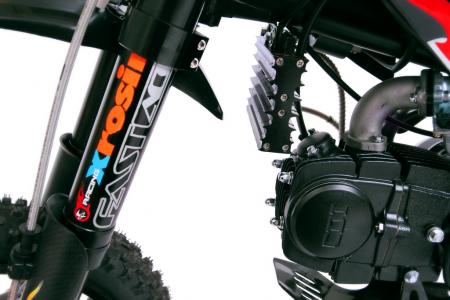

FRONT SUSPENSION : Genuine FastAce AS02 33 mm reversed fork gone up on conical bearings
REAR SUSPENSION : Genuine FastAce rear shock absorber
WHEELS : 12" (front) & 12" (rear) aluminium standard hub cross-country race and rays reinforced with axis 15mm and tire Kenda Carlsbad K772
BRAKES : Hydraulics discs brakes, braided hose
BODY SPECS : CRF style plastics
Seat height: 770mm
CARBURETOR : Mikuni
SEAT HEIGHT : 77 cm

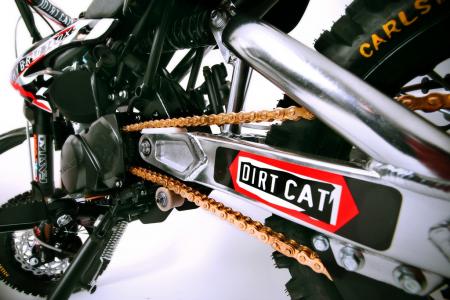

CHAIN: KMC Racing chain
SPARK PLUG: NGK
IGNITION: Key

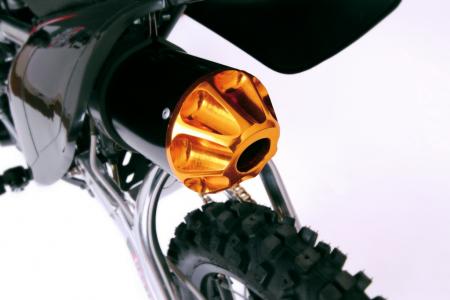

EXHAUST: CNC
COLOR: Urban Camo
